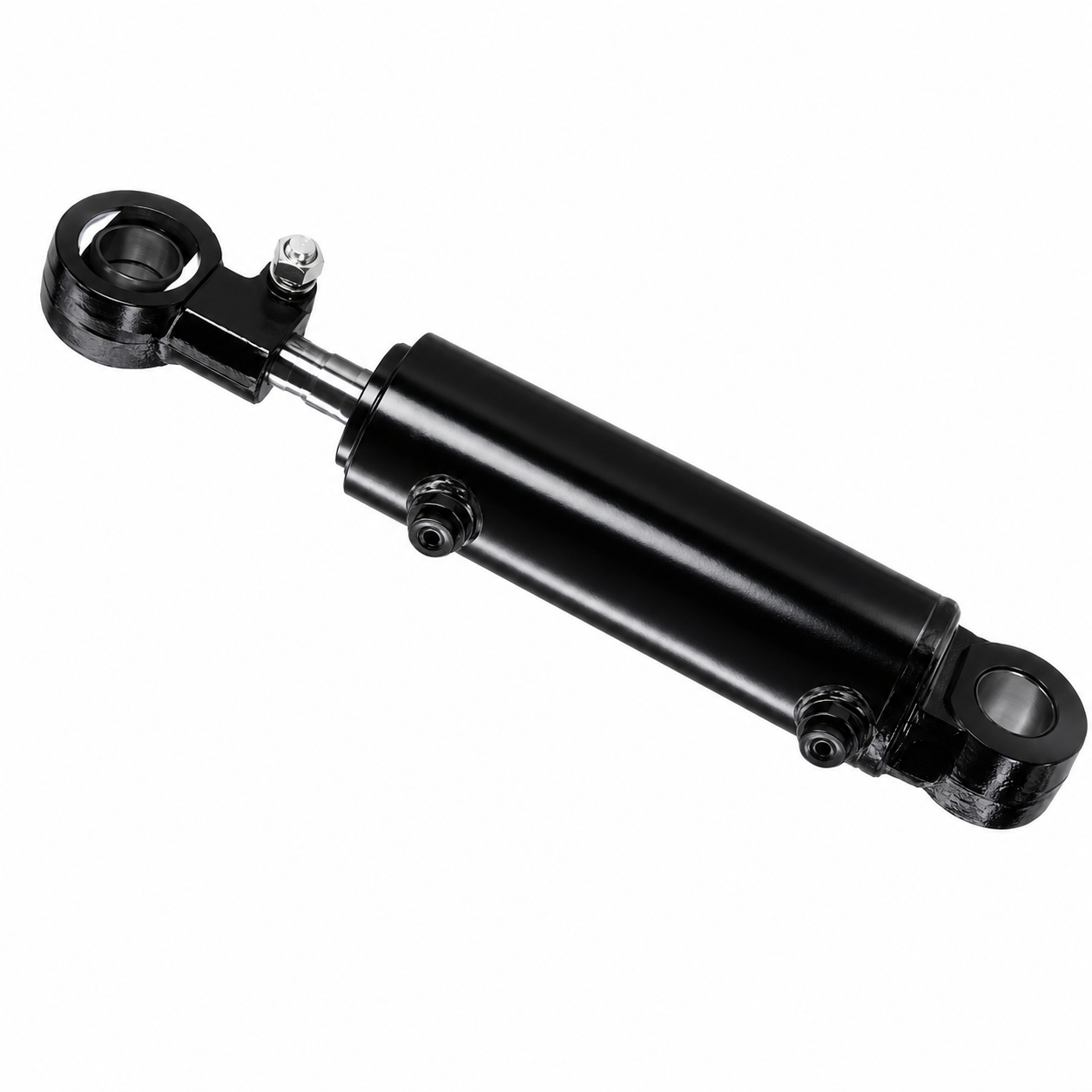

💡 Double-Acting Hydraulic Circuit

Pressurised oil enters alternating ports on either side of the piston, enabling both powered extension and powered retraction. This bidirectional control gives operators precise mast angle management at any load weight, responding instantly to joystick input with no lag or drift.

🔥 High-Strength Steel Barrel

The cylinder barrel is manufactured from cold-drawn seamless steel tubing, internally honed to Ra 0.4 µm for optimal seal performance. This finish minimises wear on dynamic seals and reduces internal leakage, even after sustained high-pressure operation at 18.1 MPa working pressure.

🔒 Hard-Chrome Piston Rod

The piston rod is precision-ground and hard-chrome plated to a depth of 20–25 µm, delivering a surface hardness exceeding HRC 56. This treatment resists abrasion from airborne particulates common in warehouse, cold storage, and port environments throughout the UK — extending service life significantly beyond standard uncoated rods.

🔧 Polyurethane & PTFE Seal Assembly

Seal kits combine imported polyurethane lip seals with PTFE anti-extrusion rings. This pairing handles the rapid pressure spikes inherent in forklift hydraulic circuits while maintaining zero external leakage across temperature ranges from -20°C to +80°C — covering every seasonal condition across England, Scotland, and Wales.

🛡

Burst-Proof at 27 MPa

Maximum withstand pressure of 27 MPa provides a safety factor well above standard working loads, protecting operators and bystanders when pressure spikes occur during sudden load catches.

🔄

Drop-In OEM Compatibility

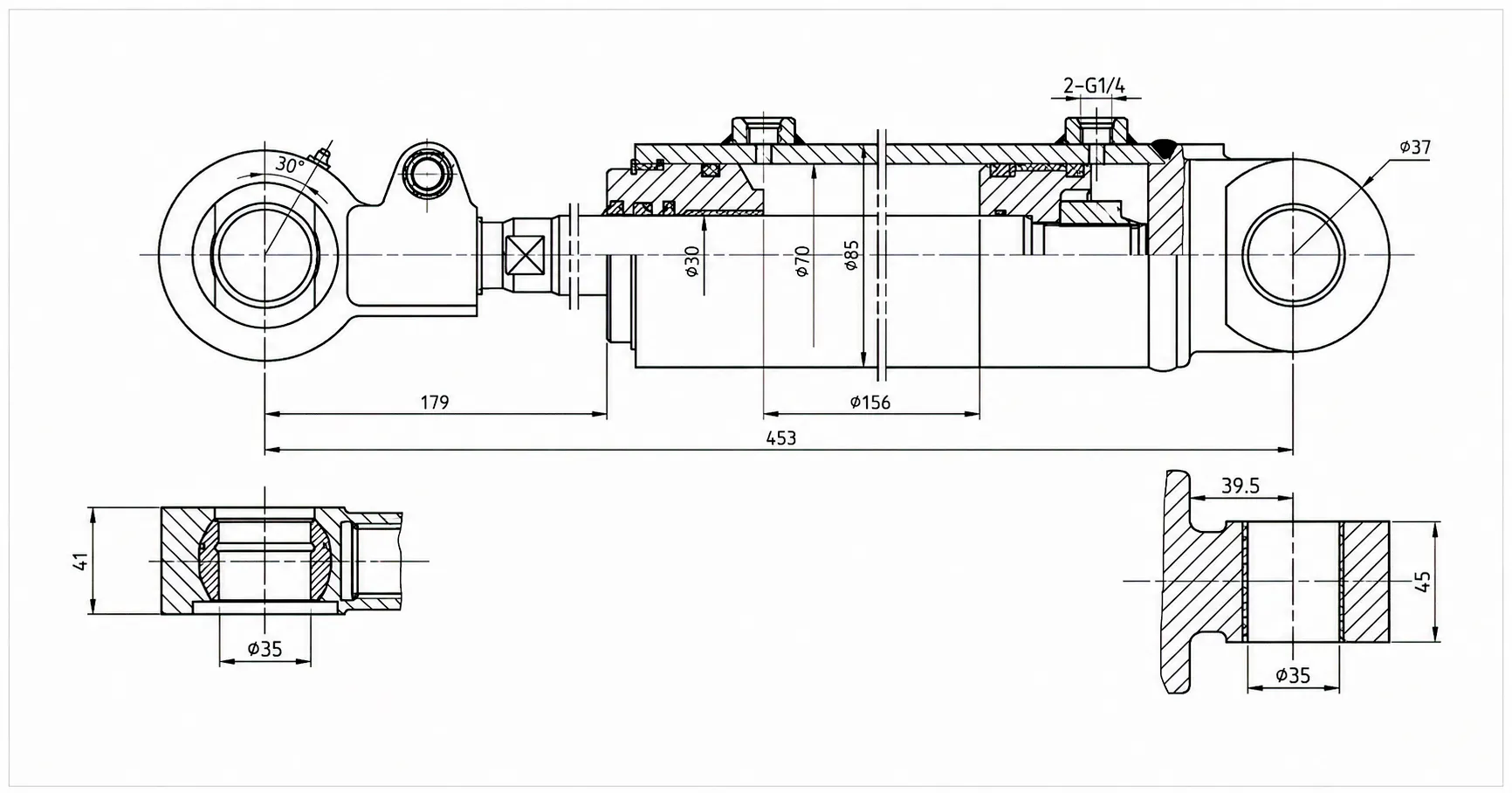

Manufactured to match original equipment dimensions for the most common forklift brands operating in UK fleets. Installation distance of 453 mm and Φ70/Φ30 specification align with widely deployed counterbalance trucks without modification.

🧰

Zero-Leak Seal Engineering

Triple-layer sealing arrangement eliminates external leakage, keeping HSE compliance straightforward and preventing oil contamination on warehouse floors — a critical requirement under UK Health and Safety Executive guidelines for forklift operation in food-grade and retail distribution environments.

⚙

Full Customisation Available

Non-standard bore, stroke, port thread, and mounting configuration available on request. Our engineering team can turn around bespoke drawings within 48 hours, with prototype manufacturing completed in as little as 7 working days for UK fleet managers dealing with discontinued part numbers.

🏠

UK Retail Distribution

Supermarket regional distribution centres in the Midlands and the North West run multi-shift forklift operations. Consistent tilt cylinder performance reduces downtime during peak restocking periods.

⚓

Port & Container Handling

At ports in Felixstowe, Southampton, and Liverpool, heavy-load forklifts face corrosive saltwater air. Our chrome-plated rods and corrosion-resistant seals are particularly well-suited to these coastal environments.

❄

Cold Storage Facilities

Operating temperatures as low as -20°C in frozen food warehouses across Scotland and Yorkshire. Seals retain full elasticity throughout, preventing the sudden leaks that interrupt cold-chain operations.

🏭

Manufacturing Plants

Automotive and aerospace component manufacturers in the West Midlands and Sheffield require hydraulic cylinders that can withstand metal dust, cutting fluid mist, and continuous multi-shift loading without seal degradation.

★★★★★

“We needed a tilt cylinder that could keep up with four-shift operations at our Birmingham parts hub. These cylinders have been running for over a year without any attention. The price point compared to OEM replacement parts was the initial draw, but the reliability sealed the deal.”

— Fleet Maintenance Supervisor, Automotive Parts Distributor, Birmingham, UK

★★★★★

“We manage forklift maintenance across cold stores in Scotland. Finding cylinders that hold up at sub-zero temperatures without seal failures was our main challenge. We’ve been impressed. No leaks, no sluggish response in the cold. Exactly what a frozen logistics operation needs.”

— Procurement Manager, Cold Chain Logistics, Glasgow, Scotland

★★★★★

“After the port authority in Felixstowe replaced our corroded cylinders with these units, the improvement was night and day. The chrome finish on the rods resists the salt air environment far better than anything we’ve tried before. Highly recommend to any port-side materials handling operation.”

— Engineering Director, Container Handling Contractor, Felixstowe, Suffolk, UK
