Industrial Hydraulic Solutions · UK Supplier

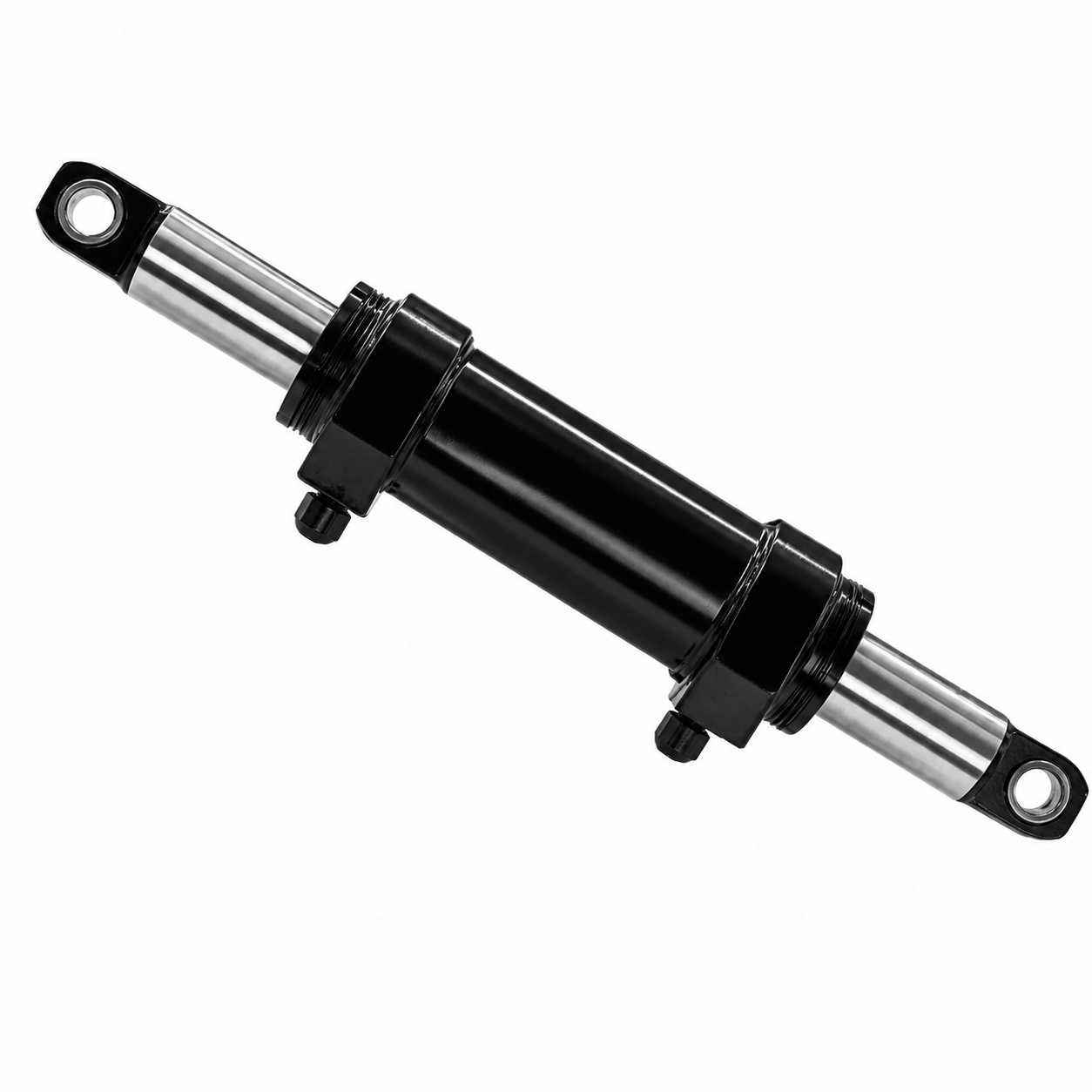

Forklift Steering Cylinder
Precision-engineered hydraulic steering cylinders built for heavy-duty forklift applications across UK warehousing, logistics, and manufacturing environments. Rated to 24 MPa withstand pressure, our HCYY11112002 model delivers consistent, dependable steering control shift after shift.
What Is a Forklift Steering Cylinder?
A forklift steering cylinder is the hydraulic actuator responsible for converting pressurised fluid into the lateral motion that turns a forklift’s rear axle. Unlike drive axle components, the steering cylinder operates under continuous cyclic load — extending and retracting dozens of times per hour in busy UK distribution centres, cold-storage facilities, and automotive assembly plants. Getting this component right is not optional; a sluggish or leaking steering cylinder translates directly into operator fatigue, goods damage, and potential HSE non-compliance. Our HCYY11112002 forklift steering cylinder is purpose-designed to handle these demanding duty cycles, offering a balanced combination of high working pressure, robust wall thickness, and sealing integrity that keeps the unit running without unplanned downtime.

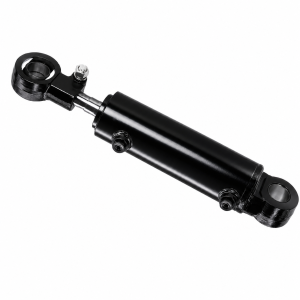

The cylinder fits within a double-acting hydraulic circuit — when the driver turns the wheel, the vehicle’s power steering pump sends fluid to one port while the other side vents, producing controlled, proportional movement of the steering knuckle. The return stroke is equally managed, so steering feel remains consistent whether the forklift is running at full load or empty. This symmetry of control is one reason operators consistently report reduced wrist strain after fleets are upgraded with correctly specified steering cylinders. Related products such as the forklift tilt cylinder and forklift lifting cylinder complete the full hydraulic actuation system for counterbalance and reach truck applications.
Why UK Businesses Choose Our Steering Cylinders
24 MPa Burst Resistance
Maximum withstand pressure of 24 MPa means the cylinder handles pressure spikes during emergency steering corrections without risk of seal blow-out or barrel deformation, a critical safety metric for fleet operators across UK logistics parks.
Precision-Honed Bore
The Phi70 bore and Phi50 rod are machined to tight tolerance levels, ensuring consistent displacement per steering input. This directly affects steering accuracy, making the forklift predictable even when navigating narrow racking aisles in multi-shift warehouse operations.
Advanced Sealing System
Multi-lip polyurethane seals with backup PTFE anti-extrusion rings maintain zero external leakage across the full operating temperature range encountered in UK environments — from unheated dock areas in winter to heated manufacturing floors year-round.
Direct-Replacement Geometry
With a 585.7 mm installation distance, the HCYY11112002 slots into OEM mounting positions on common counterbalance forklifts without bracket modification, cutting workshop installation time and keeping your fleet back on the floor faster.
Custom Manufacturing Available
Non-standard bore sizes, port configurations, and rod-end thread patterns are accommodated through our factory engineering team. If your fleet runs a less common imported brand, our engineers can reverse-engineer and replicate the original specification with verified dimensional accuracy.
Tested Before Despatch
Every unit is pressure-tested on our factory bench at 1.5x rated working pressure and cycle-tested through a minimum of 500 strokes before packing. Documentation is available on request to satisfy incoming inspection requirements from UK procurement departments.

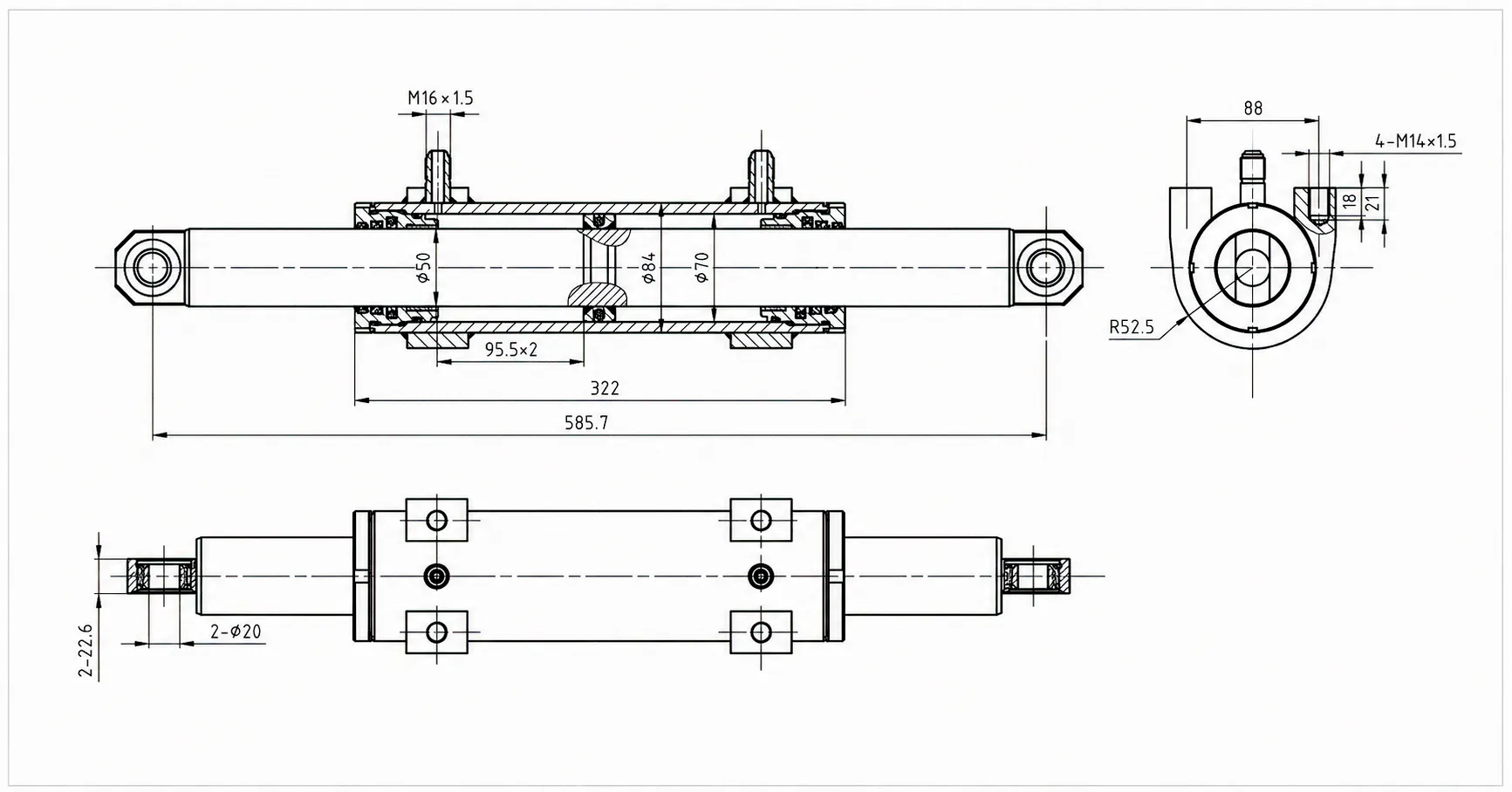

Technical Specifications
Full datasheet parameters as per factory catalogue. Contact our team for application-specific variants.
| Forklift Steering Cylinder | ||||||
|---|---|---|---|---|---|---|
| Cylinder Model | Specifications | Working Pressure | Maximum Withstand Pressure | Trip | Installation Distance | Weight |
| HCYY11112002 | Φ70 x Φ50 x 95.5 x 2 | 16 MPa | 24 MPa | 96.5 x 2 | 585.7 mm | 16.5 kg |
* Custom bore sizes, port threads, and mounting configurations available on request. Lead time varies by specification.
How It Works, What It’s Made Of & Where It’s Used
⚙ Operating Principle
The cylinder operates as a double-acting, double-rod unit. Pressurised hydraulic fluid from the orbitrol (hydrostatic steering unit) enters one chamber, extending the rod and rotating the rear axle kingpin. Simultaneously, fluid from the opposing chamber is displaced back to the reservoir. The symmetrical Phi50 rod diameter on both sides ensures equal force and velocity in both directions, critical for smooth, balanced steering response without drift.
🏭 Materials & Construction
The barrel is seamless cold-drawn steel tube, precision-honed to Ra 0.4 µm surface finish for extended seal life. The piston rod uses 45# steel with induction hardening to HRC 56–62 and hard chrome plating (minimum 25 µm) for corrosion resistance. End caps are ductile iron with Whitworth or metric port threads available. Seals are polyurethane-based with integrated PTFE backup rings to handle lateral side loads generated during sharp-turning manoeuvres.
💼 Application Scenarios
The HCYY11112002 is specified for counterbalance forklifts from 2-tonne to 5-tonne capacity, covering the bulk of the UK’s working fleet. Typical deployment environments include bonded warehouses at major ports such as Felixstowe and Tilbury, refrigerated distribution centres in the Midlands, automotive production lines in the West Midlands, and food-grade facilities requiring hydraulic fluid compatibility with H1 oils. It is also used in reach trucks and order pickers where compact installation length is a constraint.
Performance at a Glance
| Performance Attribute | HCYY11112002 | Typical Aftermarket |
|---|---|---|
| Rod Chrome Thickness | min. 25 µm | 12–18 µm |
| Bore Surface Finish | Ra 0.4 µm | Ra 0.8–1.6 µm |
| Pressure Test Protocol | 1.5x rated + 500 cycles | Rated pressure only |
| Seal Material | PU + PTFE backup | Nitrile only |
| Custom Configuration | Yes — full OEM copy | Standard sizes only |
Customer Success — Proven in the Field
Real results from UK and European fleets running our forklift steering cylinders.
Ambient Logistics Ltd — Northampton, UK
3PL Warehousing & Distribution · Fleet of 22 counterbalance forklifts
Following recurring seal failures on OEM steering cylinders from a European supplier, Ambient Logistics contacted us needing a reliable replacement that could be stocked locally. We supplied 8 units of HCYY11112002 with BSP port threads and full dimensional documentation. Within the first six months of operation, the maintenance team reported zero leakage incidents and noted a measurable improvement in steering responsiveness — particularly on their 3.5-tonne units operating in a refrigerated zone where the original cylinders had shown early seal degradation. The procurement manager noted the total landed cost per unit was 34% lower than the previous European supplier, inclusive of airfreight to East Midlands.
“We fitted four of these to our Yale GDP35 fleet and they’ve been running without issue through a full winter season. Steering feels tighter than the originals honestly. Would reorder without hesitation.”
— Tom H., Fleet Maintenance Manager, West Midlands
“Ordered a custom variant with modified port positions to suit our Linde fleet. Dimensions were spot-on and the documentation made it easy to satisfy our internal QC team. Lead time was 18 days, which is fast for a custom part.”
— Mark D., Procurement Lead, FMCG Distribution, Swindon
“The technical support before ordering was excellent. They confirmed the cylinder was compatible with our Toyota 8FBM25 before we committed to an order. Fitting took under an hour and the steering is noticeably smoother.”
— Claire P., Operations Director, Chilled Foods Manufacturer, Yorkshire
Factory & Custom Manufacturing Capability
Our manufacturing facility spans over 18,000 square metres of dedicated hydraulic cylinder production space, equipped with CNC honing lines, hard-chrome plating baths, and fully automated seal-press stations. We produce over 60,000 cylinders annually, with a dedicated OEM custom section that has developed products for 14 countries. For UK clients specifically, we carry BSP thread tooling and can supply cylinders pre-filled with HLP46 mineral oil or H1-rated food-grade fluid on request.
Custom capabilities include: non-standard bore/rod combinations from Phi25 to Phi200, stainless-steel barrels for marine or food-wash environments, integrated position sensors (LVDT or magneto-restrictive), and welded construction for high-cycle low-clearance applications. Each custom project receives a dedicated application engineer who manages drawings, prototyping, and production sign-off. Sample lead times for custom forklift steering cylinders start at 15 working days depending on complexity.
Frequently Asked Questions
Ready to Source Forklift Steering Cylinders for Your UK Fleet?
Send us your cylinder model, forklift type, and required quantity. Our team responds within one business day with a competitive price and lead time.
