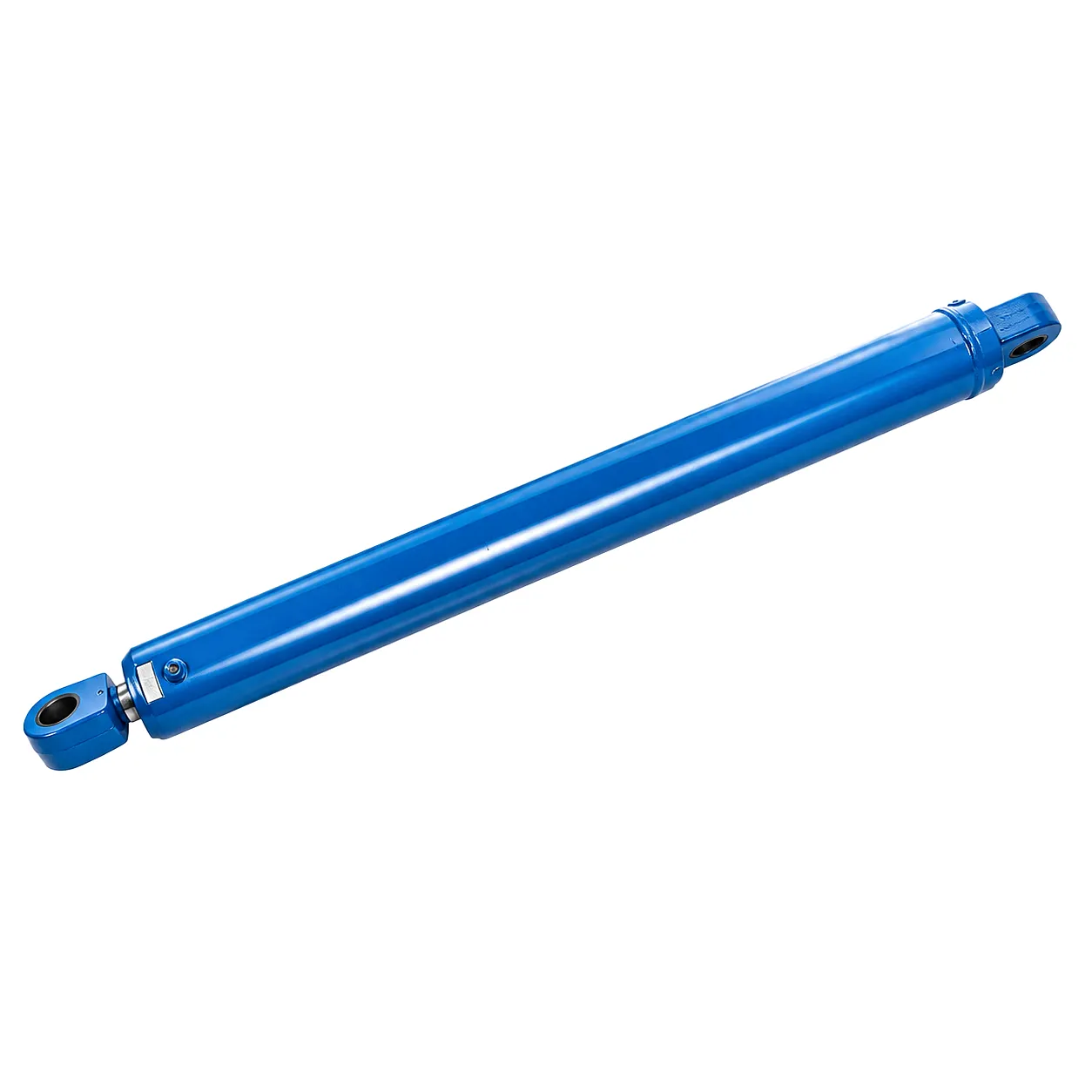

Hook-Lift Truck Swing Arm Cylinder
Model HCYY11112014 — Heavy-duty hydraulic swing arm cylinder engineered for hook-lift refuse collection vehicles, municipal waste trucks and skip loader systems operating across the UK and European markets.
What Is a Hook-Lift Truck Swing Arm Cylinder?
The hook-lift truck swing arm cylinder is the primary hydraulic actuator responsible for lifting, tilting and locking the swap body or skip container onto a hook-lift vehicle’s sub-frame. On every municipal refuse truck, skip-loader lorry and roll-on/roll-off vehicle operating in the UK, the swing arm cylinder performs thousands of load cycles over its service life — making engineering quality and material specification non-negotiable. The HCYY11112014 swing arm cylinder from Ever-Power delivers a bore of Φ160 mm, a rod diameter of Φ80 mm and a stroke of 1925 mm, producing the sustained pushing force required to handle containers weighing several tonnes on steep gradients typical of British urban streets and tight waste-transfer station yards.
Unlike generic industrial cylinders, the swing arm cylinder must cope with combined axial and lateral loading as the arm sweeps through its arc. The cylinder body absorbs bending moments, torsional shock from uneven ground and dynamic surge loads each time the truck engages a container. Our design addresses these stresses through precision-honed bore surfaces, oversized rod guidance, and high-tensile chrome-molybdenum steel rod stock — all validated through fatigue testing at our Hangzhou manufacturing facility before shipment to UK and European customers.
Technical Specifications
| Swing Arm Cylinder | ||||||
|---|---|---|---|---|---|---|
| Cylinder model | Specifications | Working pressure | Maximum withstand pressure | Trip | Installation distance | Weight |
| HCYY11112014 | Φ160×Φ80×1925 | 30 MPa | 35 MPa | 1925 | 2376 | 290 kg |
All values are nominal at 20°C hydraulic fluid temperature. Contact our engineers for duty-cycle calculations specific to your vehicle configuration.
Working Principle, Materials & Application Scenarios
How It Works
Pressurised hydraulic fluid — typically at 30 MPa nominal working pressure — enters the cap-end port, driving the precision-ground Φ80 mm rod outward. This linear extension pivots the swing arm through an arc of approximately 45–60°, raising the container hook from ground level to the stowed position on the vehicle chassis. On retraction, rod-end pressure pulls the arm back down to engage a fresh container. The cylinder’s 1925 mm stroke is matched to the geometry of most European hook-lift sub-frames and provides the full reach needed to collect containers from road kerb positions. An integrated piston seal assembly with backup rings maintains volumetric efficiency across the full working pressure range, preventing internal bypass that would cause arm drift under load.
Materials & Construction
The cylinder barrel is manufactured from seamless cold-drawn steel tube with an internal honing surface finish of Ra 0.4 µm or better, ensuring long seal life even under the lateral loading inherent in swing-arm kinematics. The piston rod is forged from 42CrMo4 chrome-molybdenum steel — hard-chrome plated to a thickness of 25–35 µm and mirror-polished — providing outstanding corrosion resistance for the salt-laden road environments common on British motorways and coastal municipal routes. End caps are machined from ductile cast steel and ultrasonically tested. External surfaces receive a two-coat industrial epoxy primer and topcoat system rated to withstand 480 hours of neutral salt-spray testing to ISO 9227.
Application Scenarios
The HCYY11112014 swing arm cylinder is designed for hook-lift refuse collection lorries, recycling and waste-transfer vehicles, skip-loader trucks serving construction sites across England, Scotland and Wales, and roll-on/roll-off haulage equipment used in bulk material logistics. It is equally applicable on road-sweeper support vehicles, liquid waste tankers fitted with hook-lift sub-frames, and municipal grounds-maintenance trucks carrying demountable tipping bodies. Any vehicle operator in the UK requiring a direct replacement for a worn or damaged swing arm cylinder will find this model dimensionally compatible with the majority of European-specification hook-lift systems produced by leading bodybuilder brands.
Why Choose the HCYY11112014 Swing Arm Cylinder
High Rated Working Pressure
Nominal 30 MPa working pressure with a 35 MPa burst-tested maximum withstand pressure gives an ample safety margin for aggressive duty cycles.
Chrome-Plated Rod Durability
Hard chrome plating on the 42CrMo4 rod resists road salt, grit ingress and surface pitting, extending service intervals and reducing fleet maintenance costs.
Precision-Honed Bore
Ra 0.4 µm bore finish minimises seal wear and ensures consistent volumetric efficiency across the full stroke in all weather conditions.
Fast UK Delivery
Standard models held in pre-production batches support short lead times for UK fleet operators, minimising vehicle downtime and keeping your refuse rounds on schedule.
Full Documentation Package
Each shipment includes a material certificate, dimensional inspection report and hydraulic test certificate, supporting your inbound quality process and vehicle CE documentation.
Custom Dimensions Available
Non-standard stroke lengths, port positions and mounting configurations are available on request, allowing direct fitment to OEM or retrofit bodywork without modification.
Related Products in the Hook-Lift & Boom Lift Range
Our cylinder series for environmental protection vehicles covers a wide spectrum of actuator requirements beyond the swing arm application.
Hook-Lift Truck Locking Cylinder
The locking cylinder works in tandem with the swing arm cylinder to secure the container body firmly against the vehicle sub-frame during transport. Designed for the same 30 MPa hydraulic circuit as the HCYY11112014, it ensures compliant container retention in accordance with UK road safety legislation.
Articulated Boom Lift Steering Cylinder Φ63×Φ35×320
Compact steering cylinder for articulated boom lift platforms, providing precise directional control at ground level. The Φ63×Φ35×320 specification suits tight-clearance chassis layouts where a full-bore steering cylinder would be impractical, and integrates cleanly with standard orbital steering valve circuits.
Customer Success — Municipal Waste Fleet, West Yorkshire, UK
West Yorkshire Council — 14-Vehicle Hook-Lift Fleet Overhaul
A municipal waste management contractor operating 14 hook-lift refuse lorries across Bradford, Leeds and Huddersfield contacted our UK distribution partner after experiencing repeated swing arm cylinder failures on their existing supplier’s units. The primary issue was premature rod seal degradation — attributed to inadequate chrome plating thickness (under 15 µm) — combined with bore surface corrosion caused by water ingress during winter salting operations.
After reviewing the fleet’s hydraulic circuit diagrams and sub-frame geometry, our application engineers specified the HCYY11112014 swing arm cylinder as a direct replacement, with a custom port thread adaptation to suit the existing 3/4″ BSP hydraulic connections without pipe modification. All 14 cylinders were shipped within six weeks and fitted by the contractor’s workshop team using our installation guide.
Outcome: After 12 months of daily operation on Bradford’s mixed-terrain refuse routes — including steep cobbled streets and tight rear-access alleyways — zero cylinder failures were recorded. The fleet manager reported an estimated annual saving of approximately £18,000 in unplanned maintenance and vehicle downtime compared with the previous supplier’s product.
What Our UK Customers Say
“We’ve been running these swing arm cylinders on our skip-loader fleet in Manchester for over a year. The rod finish is noticeably better than what we had before — no pitting, no weeping seals. Exactly what busy urban fleet work demands.”
“We sourced the HCYY11112014 to replace a worn-out unit on a Palfinger-sub-framed lorry. The dimensions were spot-on and the technical data sheet gave us everything we needed for our hydraulic safety check. Lead time was shorter than expected.”
“Competitive price for the spec you’re getting. The test certificate and material cert came with the delivery — really helps when we need to justify maintenance decisions to the council’s procurement team. We’ll be ordering again.”
Manufacturing Facility & Custom Engineering Capability
Our production facility in Hangzhou, China operates a dedicated hydraulic cylinder manufacturing line equipped with CNC deep-hole boring machines, horizontal honing centres, automatic chroming lines and a fully enclosed hydraulic test stand capable of proof-testing cylinders to 1.5× rated pressure. The facility holds ISO 9001:2015 certification and regularly supplies cylinders to OEM vehicle manufacturers across Europe, including multiple UK-registered bodybuilder companies.
Bespoke product customisation is a genuine strength of our operation — not an afterthought. Our engineering team can modify bore diameter, rod diameter, stroke, installation distance, end-fitting geometry, port thread standard (metric, BSP or SAE), paint specification and seal compound (standard Nitrile, Viton or PTFE-backed) to match your exact application. Drawing review, DFMEA support and prototype delivery within agreed timescales are part of the standard custom-engineering service offered to UK fleet builders and aftermarket distributors. Minimum order quantities for custom variants are discussed on a project-by-project basis and are often lower than customers expect.
Frequently Asked Questions
Ready to Order or Need More Technical Information?
Our application engineering team is available to help UK fleet managers, vehicle bodybuilders and hydraulic system distributors select the correct swing arm cylinder specification for their application.
