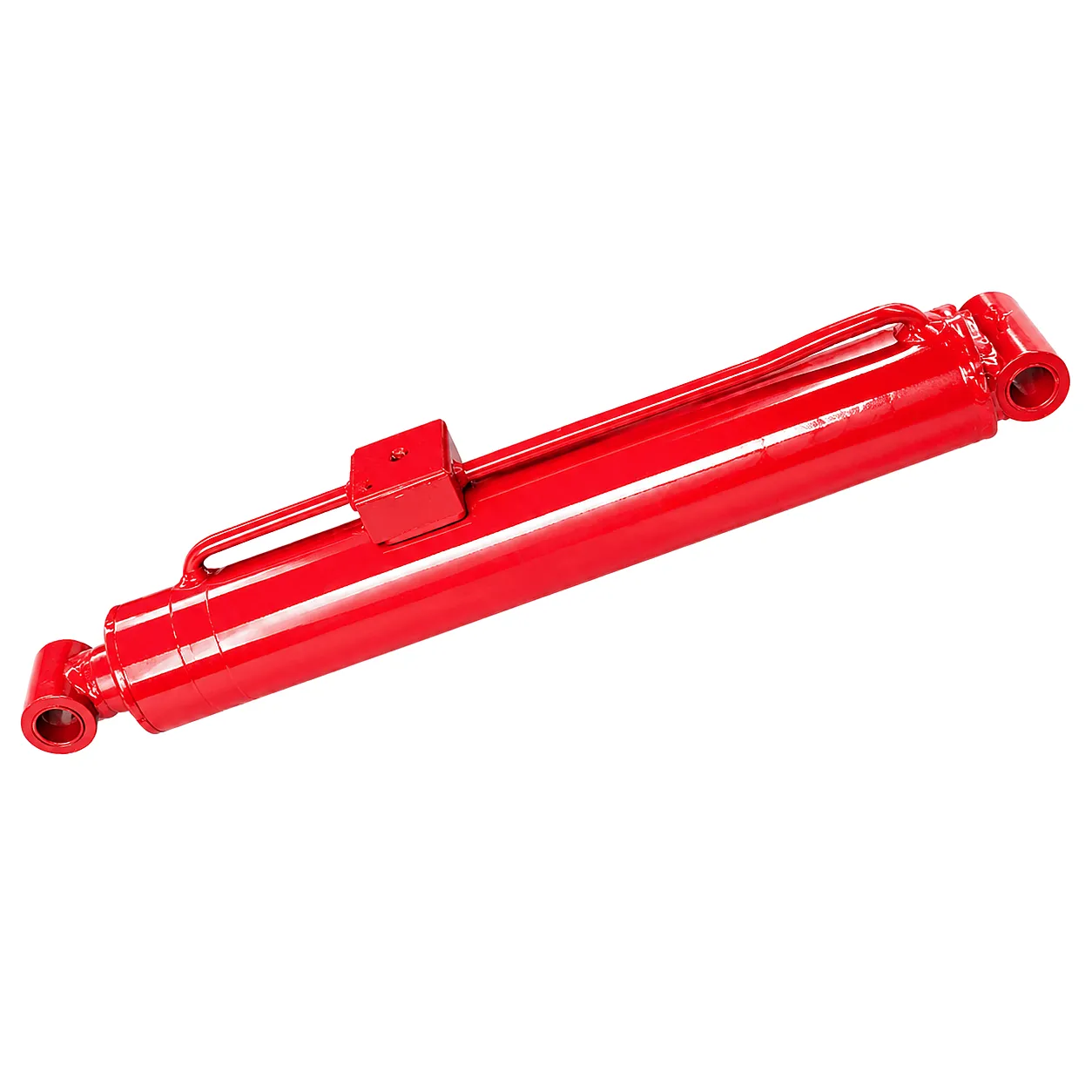

Main Boom Angle Tilt Cylinder
for Articulating Boom Lift — Φ70×Φ40×555
Model HCYY11112010. A precision-engineered hydraulic cylinder purpose-built for the articulating main boom tilt function, delivering consistent angular control under sustained working pressures across elevated platform operations throughout the UK construction, utilities, and infrastructure sectors.
What the Main Boom Angle Tilt Cylinder Actually Does
On an articulating boom lift, the junction between the lower and upper boom sections is one of the highest-stress pivot points on the machine. Every time an operator raises or lowers the articulating joint, the main boom angle tilt cylinder is the single component translating hydraulic pressure into precise angular movement. In the HCYY11112010 design (Φ70×Φ40×555), a 70 mm bore delivers the pushing force, while a 40 mm rod diameter resists the lateral bending loads that accumulate over years of cyclic extension under load. The 555 mm stroke accommodates the full range of articulating angles required by modern self-propelled boom lifts rated for working heights between 12 m and 22 m, which are the most common platform categories seen on UK civil engineering and utilities projects.
The cylinder’s sealing system plays a disproportionately large role in long-term reliability. Nitrile or polyurethane rod seals rated for continuous operation at 20 MPa working pressure must also tolerate the micro-vibrations generated by diesel and electric powertrains, UV exposure from outdoor deployment, and the mineral hydraulic oils typically used in UK equipment rental fleets. A cylinder that passes a nominal pressure test but uses budget wiper seals will present as a slow weep within six to twelve months of field use — an outcome that disrupts hire schedules and triggers costly on-site service calls. The HCYY11112010 addresses this with a multi-lip seal stack and a chrome-plated rod surface hardness that sustains consistent oil film behaviour across the operating temperature range encountered in British outdoor conditions.
Technical Specifications — HCYY11112010
All parameters are from the original product datasheet. Values represent standard production configuration; custom specifications available on request.
| Cylinder Model | Specifications | Working Pressure | Maximum Withstand Pressure | Trip (mm) | Installation Distance (mm) | Weight |
|---|---|---|---|---|---|---|
| HCYY11112010 | Φ70×Φ40×555 | 20 MPa | 30 MPa | 555 | 923 | 28 kg |
* Trip = Stroke length in mm | Installation distance measured eye-to-eye in retracted position
Why Maintenance Engineers and Fleet Managers Specify This Cylinder
Matched Bore-to-Rod Ratio
The 70/40 mm bore-to-rod ratio is engineered for the compressive loads that dominate main boom angle work, balancing retraction force with column strength under eccentric loading.
30 MPa Burst Rating
A maximum withstand pressure of 30 MPa — 50% above normal working pressure — provides a meaningful safety buffer during pressure spikes from sudden load changes or cold-start conditions in UK winters.
Compact 28 kg Assembly
At 28 kg, this cylinder allows single-technician handling during field replacement, reducing the resource overhead of scheduled maintenance stops and unplanned breakdowns on hire equipment.
Chrome-Hardened Piston Rod
The piston rod receives hard chrome plating to a depth that resists abrasion from airborne construction dust and particulates, which are particularly prevalent on demolition, groundwork, and utility reinstatement sites across England and Scotland.
Drop-In OEM Compatibility
The 923 mm installation distance (eye-to-eye retracted) is dimensioned for direct cross-reference with the most widely deployed articulating boom platforms in the UK rental market, minimising fitting time and avoiding fabrication work at the point of replacement.
Full Traceability & Quality Control
Each main boom angle tilt cylinder undergoes hydraulic pressure testing, dimensional inspection, and paint adhesion verification before dispatch, with production records retained for full component traceability during LOLER and thorough examination processes in the UK.
Engineering Principle, Material Composition & Application Environments
The operating principle of the HCYY11112010 is a double-acting hydraulic cylinder with welded end caps. Pressurised hydraulic fluid enters the cap end to extend the rod, tilting the main boom upward; when fluid is directed to the rod end, the cylinder retracts, lowering the boom joint. Because the articulating joint carries both the boom’s structural bending moment and the operator platform payload, the cylinder must maintain its extended position with zero drift under static load — achieved through a combination of tightly toleranced spool valve co-operation at the control block level and the cylinder’s own geometric stiffness.
The barrel is manufactured from seamless cold-drawn steel tube — typically 27SiMn or equivalent hydraulic cylinder tube grade — honed internally to an Ra 0.4 surface finish that promotes effective seal contact without excessive friction. The piston rod is machined from medium-carbon steel with a hard chrome layer providing surface hardness in the 850–950 HV range. End fittings are precision machined to accept clevis pins of the bore and tolerance class specified by the original equipment manufacturer, ensuring correct load distribution and preventing fretting fatigue at the pin contact surfaces.
In terms of application scope, this main boom angle tilt cylinder is the correct replacement or upgrade component for articulating boom lifts used in UK civil engineering groundwork, telecommunications mast maintenance, railway overhead line work, stadium and venue maintenance, industrial facility shutdowns, and high-bay warehouse storage system installation. It is also specified for new OEM builds by aerial platform manufacturers whose production engineering teams require a hydraulic supplier that can offer validated sub-assembly drawings and serialised production quality records — a requirement that has become standard for CE-marked machinery entering the UK market under the retained version of the Machinery Directive.
| Material / Component | Specification | Function |
|---|---|---|
| Cylinder Barrel | Seamless cold-drawn steel, honed bore Ra 0.4 | Pressure containment, seal running surface |
| Piston Rod | Medium-carbon steel, hard chrome 850–950 HV | Load transmission, abrasion resistance |
| Rod Seals | Polyurethane / PTFE composite stack | Dynamic sealing, oil retention, wiper function |
| End Caps | Welded steel, precision-bored clevis eye | Structural mounting, pin-load distribution |
| Surface Finish | Epoxy primer + polyurethane topcoat | Corrosion protection, outdoor exposure |
Cylinder Series for Aerial Work Vehicles
The HCYY11112010 is part of a complete family of hydraulic cylinders covering every function on articulating and telescopic boom lifts.
Main Boom Extension Cylinder
Φ110×Φ75×815 — Telescopic boom lift primary extension. Handles the full rated platform load across the entire extension stroke.
Upper Platform Leveling Cylinder
Φ63×Φ45×60 — Maintains platform horizontal attitude as the boom articulates through its full angular range.
Customer Success Cases
Case Study — UK Plant Hire Operator
Northern England Equipment Rental Fleet — Boom Cylinder Replacement Programme
A plant hire business operating a fleet of 34 articulating boom lifts across Yorkshire and the North East was experiencing recurring main boom angle cylinder failures on machines aged between 6 and 9 years. Seal degradation at the 20 MPa working pressure was generating oil loss incidents that triggered PSSR compliance reviews and took units offline for 5–7 days per event. The maintenance manager sourced HCYY11112010 replacement units as a direct drop-in, matching the 923 mm installation distance and clevis pin geometry exactly. After fitting 12 units across the highest-utilisation machines in the fleet, the operator reported zero oil-loss incidents over the following 14 months of continuous outdoor deployment, covering a mix of construction groundwork, stadium maintenance, and overhead cable installation work. The 28 kg unit weight allowed their two-person field service team to complete replacements without a lifting aid, reducing per-event downtime to under 3 hours.
“We have fitted these main boom angle cylinders to eight machines across our Scottish hire depot. The drop-in fit and the quality of the rod seal finish are noticeably better than the previous-generation parts we were using. No leaks after 11 months of outdoor exposure.”
★★★★★
D. MacPherson — Fleet Maintenance Manager, Glasgow, Scotland
“As a workshop specialising in aerial platform refurbishment in the Midlands, we get through a significant number of boom tilt cylinders each year. The technical documentation provided, including the pressure test certificates, satisfies our insurance requirements for LOLER thorough examination sign-off.”
★★★★★
R. Patel — Workshop Director, Birmingham, England
“Our procurement team reviewed three potential suppliers for articulating boom hydraulic cylinders for our railway overhead line maintenance fleet. The combination of traceable documentation, rapid delivery to our Bristol depot, and competitive unit pricing made this the straightforward choice.”
★★★★★
S. Hargreaves — Procurement Engineer, Bristol, England
Production Capability & Custom Cylinder Engineering
The manufacturing facility behind the HCYY11112010 operates CNC deep-hole boring, honing, and precision grinding lines capable of producing hydraulic cylinder barrels from 40 mm to 320 mm bore diameter. Piston rod grinding and hard chrome plating are performed in-house, giving the production team direct control over surface finish specification — a critical variable for seal service life. The quality laboratory holds calibrated pressure test benches rated to 60 MPa, allowing every cylinder to be individually tested at twice its working pressure before shipment.
Custom cylinder design is a core part of the business, not an afterthought. OEM aerial platform manufacturers, equipment refurbishers, and specialist machinery builders across the UK and Europe regularly engage the engineering team for cylinder design consultations covering bore diameter, rod diameter, stroke, end fitting geometry, seal material selection for non-standard hydraulic fluids, and surface coating requirements for corrosive environments. DXF drawings, 3D STEP files, and PPAP-style first article documentation are available on request to support customers with their own product approval processes.
Serving the UK Aerial Platform Market
The UK access equipment sector is regulated through a combination of LOLER 1998 (Lifting Operations and Lifting Equipment Regulations), PSSR 2000 (Pressure Systems Safety Regulations), and the guidance issued by the International Powered Access Federation (IPAF). Any replacement hydraulic cylinder fitted to a boom lift in service in Britain must meet the original equipment specification for pressure rating, installation dimensions, and surface protection — requirements the HCYY11112010 addresses directly. Operators in London, Manchester, Edinburgh, Leeds, Birmingham, Bristol, Cardiff, and across rural England and Scotland can obtain these main boom angle tilt cylinders with shipping terms structured around standard UK freight lanes, and technical support is available by email to assist with cross-referencing against OEM part numbers or resolving dimensional queries prior to purchase.
For plant hire companies managing fleets of 10 or more articulating boom lifts, bulk pricing and scheduled delivery programmes are available, allowing procurement managers to maintain a buffer stock of critical hydraulic components without committing to excessive on-site inventory.
